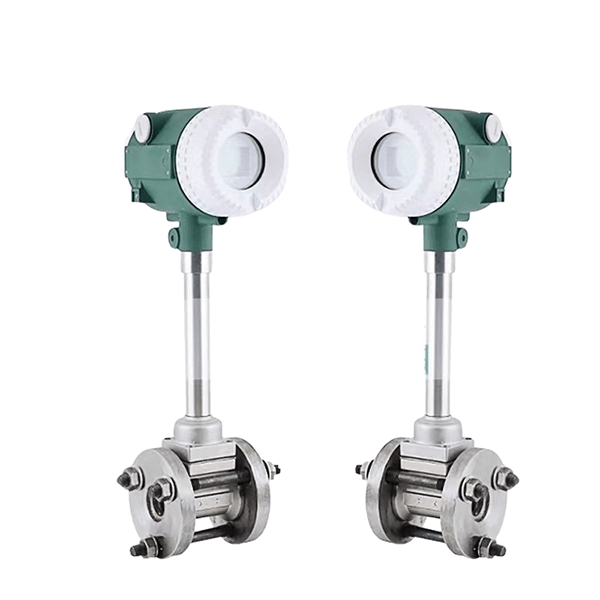

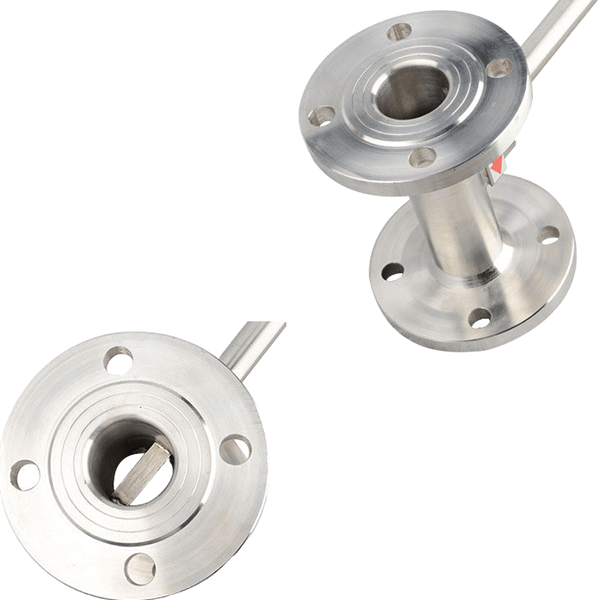

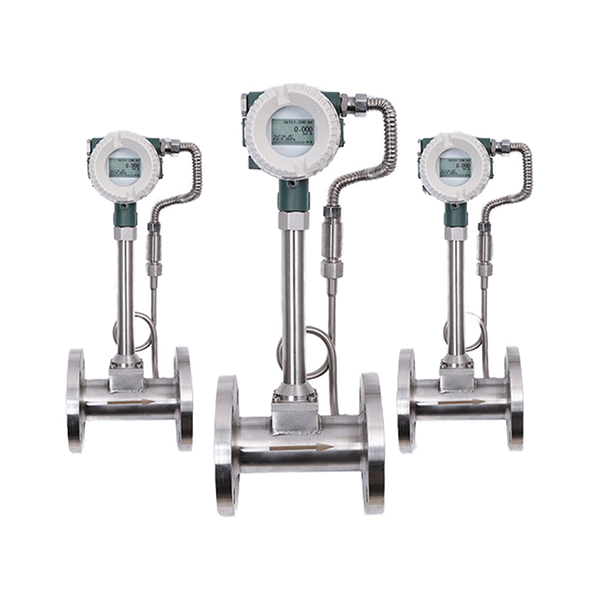

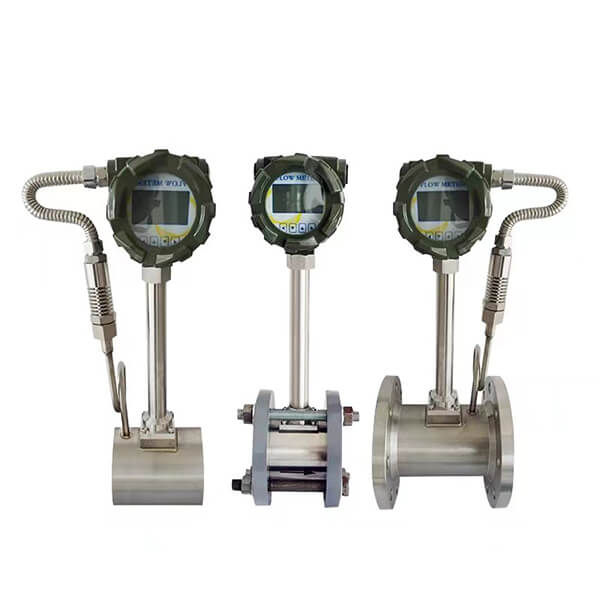

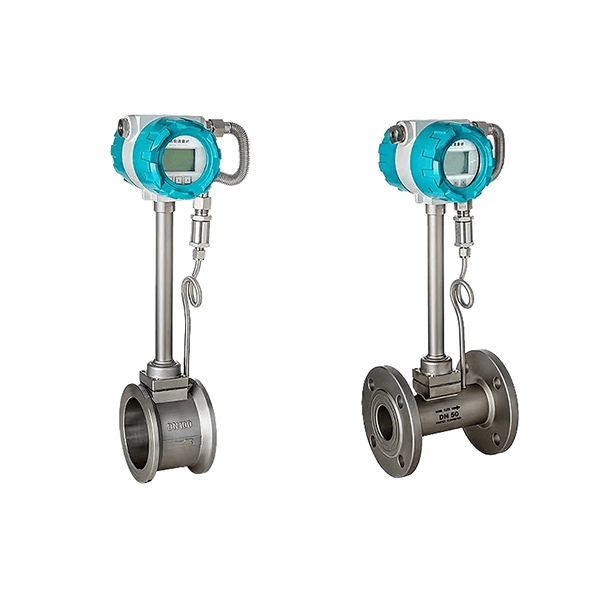

Nuke Intelligent Vortex Steam Flowmeter Pulse Signal 4-20ma Output

NUKE vortex flowmeter with temperature and pressure compensation function, suitable for chemical, petroleum, pharmaceutical, liquid and gas flow monitoring and control.

  • Seismic and pressure resistance: The sensor adopts compensation design to improve the seismic resistance of the instrument, simple structure and high durability
  • Good safety: Within the specified range of Reynolds coefficient, the measurement is not affected by medium temperature, pressure and viscosity.
  • Support custom appearance, OEM, wholesale, etc.
  • High temperature resistance: The sensitive element is packaged in the probe, the detection element does not contact the measuring medium, and the service life is long.
  • Fast shipping, short lead times, affordable prices, and full certification

Vortex Flowmeter Source Description

Nuke vortex flowmeters are widely used for gas, liquid and steam flow measurement in industrial processes. It has the following characteristics:

  • No moving parts: There are no moving parts inside the vortex flowmeter, which is not easy to wear, high reliability, long life and low maintenance cost after long-term use.
  • High measurement accuracy: The flow meter is not sensitive to the flow rate, density and other parameters of the fluid, and is suitable for a variety of media, ensuring high measurement accuracy within a certain range.
  • Wide range ratio: Can measure a variety of conditions from small flow to large flow, suitable for a variety of demand flow range.
  • Strong anti-interference: Insensitive to changes in fluid temperature and pressure, suitable for harsh environments and high temperature and high pressure working conditions.
  • Easy installation: Flange installation is usually used, and on-site installation and debugging is simple, reducing construction time and cost.
  • Digital output: Many vortex flowmeters have a digital output function, which can directly transmit flow data to the monitoring system to achieve automatic management.

Nuke Intelligent Vortex Steam Flowmeter Pulse Signal 4-20ma Output Data Sheet

Vortex Flowmeter with Temperature and Pressure Compensation
Nominal Diameter (mm) DN15 – DN300
Nominal Pressure (MPa) DN15 – DN200 / 4.0 (Supply upon agreement if > 4.0) DN250 – DN300 / 1.6 (Supply upon agreement if > 1.6)
Allowable Vibration Acceleration Piezoelectric type: 0.2g; Capacitive type: 1.0 ~ 2.0g
Medium Temperature (℃) Piezoelectric type: -40℃ – 150℃, -40℃ – 260℃, 40℃ – 330℃. Capacitive type: -40℃ – 400℃, -40℃ – 500℃ (Order upon agreement)
Body Materia 1Cr18Ni9Ti (Supply upon agreement for other materials)
Accuracy ±1%, ±1.5%
Rangeability 1:6 – 1:30
Power Supply Voltage DC 12V, DC 24V; Battery-powered type: 3.6V
Battery Output Signal Square wave pulse (excluding the battery-powered type) High level: 25V, Low level: < 1V; Current: 4 – 20mA

Please Contact Me to Get a Free Quote on Vortex Flow Meters Today

More accurate liquid and gas flow measurements in high temperature, high pressure or corrosive media.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

Vortex Flowmeter Source Applications

  • Industrial process control:
    Vortex flowmeters are used to monitor and control the flow of liquids and gases in chemical, petroleum, pharmaceutical, food processing and other industrial fields. They ensure stability and consistency in the production process.
  • Energy monitoring:
    In energy management, vortex flowmeters are used to measure the flow of gas, steam and hot water to monitor and optimize energy consumption.
  • Water Resources Management:
    Vortex flowmeters are widely used in water treatment, water supply system, wastewater treatment and irrigation. They help to ensure the efficient use and rational distribution of water resources.
  • Environmental monitoring:
    Vortex flowmeters are used in environmental monitoring for applications such as measuring gas flow, monitoring exhaust emissions and atmospheric sampling to ensure environmental compliance.
  • Oil and Gas Industry:
    In the oil and gas industry, vortex flowmeters are used to measure flow in oil and gas pipelines for production, transportation and distribution monitoring.
  • Refrigeration and air conditioning:
    Vortex flowmeters are used in refrigeration and air conditioning systems to ensure the accurate flow of coolant and maintain the normal operation of equipment.
