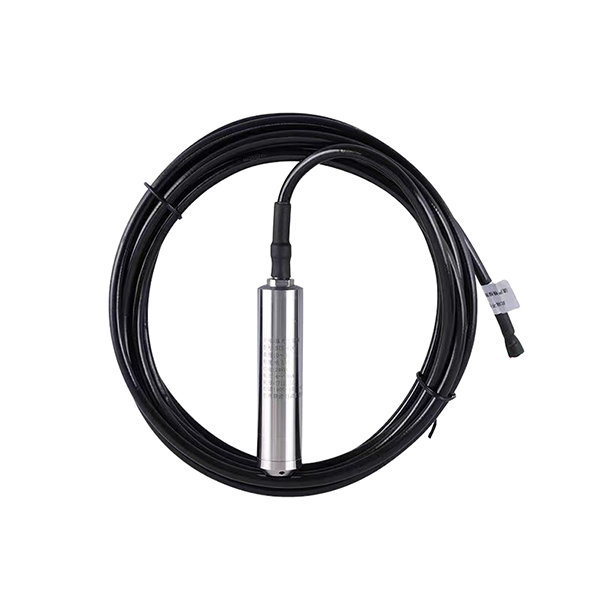

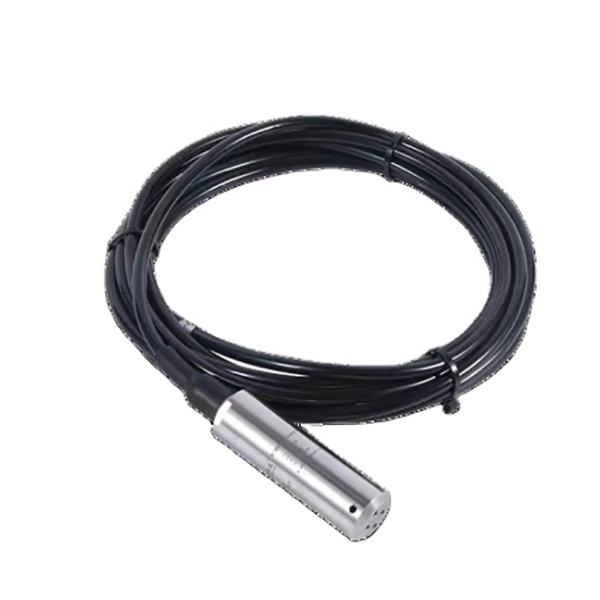

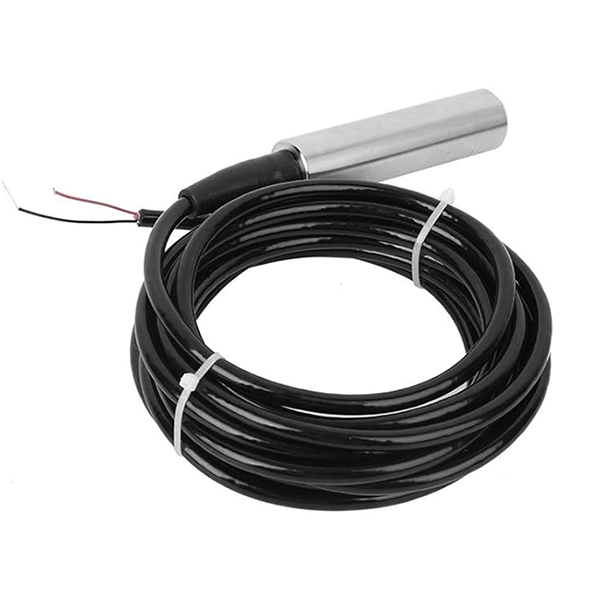

Nuke Input Water Level Sensor 4~20mA

Nuke integrated input level meter is used for accurate measurement, plugging and leakage prevention, flow measurement and control in chemical, water treatment, metallurgy, natural gas production processes.

High precision measurement: Provides accurate level measurement for a wide range of liquids, including clean water, sewage and chemical media.
Corrosion resistance: Many models feature corrosion-resistant materials (such as stainless steel or plastic) that are suitable for use in aggressive liquid environments.
Waterproof design: Transmitters usually have good water resistance to ensure normal operation in wet or waterlogged environments.
Easy installation: Simple design, easy installation, can be directly put into the liquid, reducing complex installation procedures.4.
Real-time monitoring: It can provide real-time liquid level data, support remote monitoring, and facilitate users to grasp the liquid level changes in time.
A variety of output signals: Usually support a variety of output signals (such as 4-20 mA, RS485, etc.), easy to integrate with various control systems.

Get A Free Quote

Input Type Liquid Level Gauge Description

Nuke vortex flowmeters are widely used for gas, liquid and steam flow measurement in industrial processes. It has the following characteristics:

No moving parts: There are no moving parts inside the vortex flowmeter, which is not easy to wear, high reliability, long life and low maintenance cost after long-term use.
High measurement accuracy: The flow meter is not sensitive to the flow rate, density and other parameters of the fluid, and is suitable for a variety of media, ensuring high measurement accuracy within a certain range.
Wide range ratio: Can measure a variety of conditions from small flow to large flow, suitable for a variety of demand flow range.
Strong anti-interference: Insensitive to changes in fluid temperature and pressure, suitable for harsh environments and high temperature and high pressure working conditions.
Easy installation: Flange installation is usually used, and on-site installation and debugging is simple, reducing construction time and cost.
Digital output: Many vortex flowmeters have a digital output function, which can directly transmit flow data to the monitoring system to achieve automatic management.

Nuke Input Water Level Sensor 4~20mA Data Sheet

Submersible level transmitter without display
TECHNICAL PARAMETER
Measurement Range	0~0.5..200mH2O
Overload Pressure	1.5 times full scales
Accuracy	±0.5%F.S.
Stability	<0.5%F.S.Year
Working Temperature	-20~+85℃
StorageTemperature	-40~+100℃
Medium	Fluids compatible with 304 and 316 stainless steel,PE,PV,Viton or NBR
Electrical Performance	Two-wired	Three-wired	Four-wired
Output Signal	4~20mA	0.5~4.5V	RS485
Power Supply	8~36VDC	4.75~5.25VDC	10~30VDC
Electrical Performance	Two-wired 4~20mA		Four-wired
Output Signal			RS485
Power Supply	10~30VDC	14~36VDC	10~36VDC
Electrical Connection	Directly outlet
Protection Grade	IP68
Pressure Connection	Throw-inType
Pressure Form	Gauge Pressure
Certification	Safety explosion-proof type E,RoHS,EU electrical safety standards CE

Please Contact Me to Get a Quote for an Input Level Meter

The plund-type liquid level meter uses high-precision sensor and advanced signal processing technology to achieve accurate measurement of liquid level.

Get A Free Quote Now

Products Categories

Flow Measurement

Level Measurement

Pressure Measurement

Temperature Measurement

Get A Free Quote

Input Type Liquid Level Gauge Applications

Input level gauges are widely used in many fields, mainly including:

Water treatment: In sewage treatment plants and waterworks, it is used to monitor water levels and ensure the normal operation of the system.
Petroleum and Chemical: Liquid height is monitored in tanks and reactors to ensure production safety and feedstock management.
Food and beverage: Used to monitor liquid levels in fermenters, storage tanks and processing equipment to ensure product quality.
Pharmaceutical: Monitor liquid levels during drug production to comply with strict hygiene standards.
Power industry: Monitoring water levels in cooling towers, boilers and storage tanks to ensure safe operation of equipment.
Construction and engineering: Used for water table monitoring and soil moisture measurement to aid in civil engineering design and construction.
Environmental monitoring: Monitoring level changes in water bodies to assess environmental conditions and water resource management.

Due to its high accuracy, reliability and wide applicability, the submersible level gauge has become an indispensable measurement tool in many industries.

More Information

Input type liquid level gauge Chinese supplier source manufacturer

Nuke Intelligent Instruments is located in Nanjing, China, with a professional R & D team, deeply engaged in the instrument industry. Products have integrated electromagnetic flowmeter, vortex flowmeter, split electromagnetic flowmeter and other products, can be customized according to customer choice, patch production and software page design
