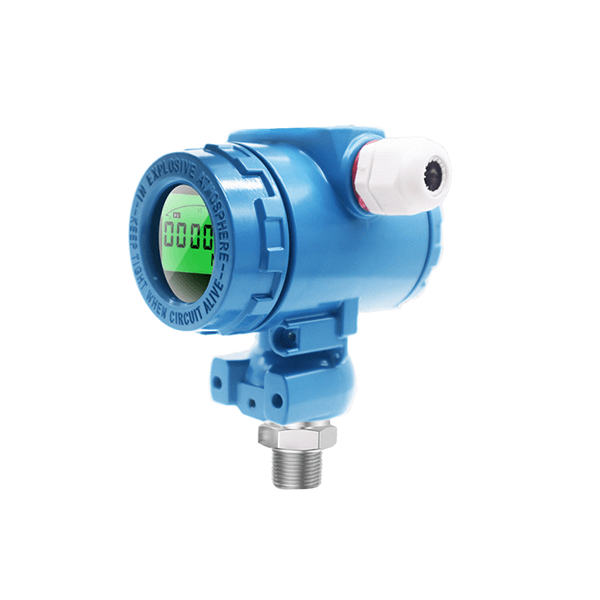

2088 Diffused Silicon Pressure Transmitter
Advantages and features of diffusion silicon pressure transmitter: high accuracy, stability, corrosion resistance, compact design, wide application, low maintenance.
- High precision measurement
The diffused silicon sensor technology provides up to 0.1% accuracy for precision industrial applications. - Wide-range
Support a variety of pressure ranges, from vacuum to high pressure (such as: 0-0.1MPa to 0-400 MPa), to meet the needs of different occasions. - Good anti-interference
Excellent resistance to electromagnetic interference and temperature drift, suitable for stable operation in harsh environments. - Corrosion-resistant material
Enclosures and parts that contact media are usually made of stainless steel or special alloy materials, suitable for corrosive media. - Intelligent function
Some models are equipped with intelligent diagnosis, remote monitoring and other functions to facilitate real-time data acquisition and maintenance management.
These characteristics make the diffused silicon pressure transmitter widely used in industrial automation, chemical industry, petroleum and other fields.
2088 Diffused Silicon Pressure Transmitter Description
The silicon piezoresistive pressure transmitter offers high accuracy and stability in measuring pressure across various applications. It features a compact design, temperature compensation, and robust construction, making it suitable for harsh environments. Common applications include oil and gas, water treatment, and HVAC systems. Target customers include industrial manufacturers, process automation companies, and research institutions seeking reliable pressure measurement solutions for their systems.
2088 Diffused Silicon Pressure Transmitter Data Sheet
| 2088 Pressure Transmitter | ||
| General | Value | |
| Measurement Range | -100KPa…0~10KPa…60MPa | |
| Overload Pressure | 2 times of full scales (2x) | |
| Breaking pressure | 3 times of full scales (3X) | |
| Accuracy | ±0.5%F.S | |
| Stability | 0.1%F.S/Year | |
| Working Temperature | -20~80°C | |
| CompensationTemperature | -10~70°C | |
| Medium Compatibility | Gas or liquid compatible with 316L,1Cr18Ni9Ti, VITONand NBR. | |
| Compensation Temperature | 10~70°C | |
| Output Mode | Two-wired | Four-wired |
| Output Signal | 4~20mA | RS485 |
| Power Supply | 10~30Vdc | 10-30VDC |
| Insulation | >100MΩ@500V | |
| Electric Strength | 500V@60 second | |
| Electrical Connection | Waterproof outlet | |
| Protection Grade | IP67 | |
| Pressure Connection | M20x1.5 | |
Please Contact me for Prices of 2088 Diffused Silicon Pressure Transmitter
Nuke pressure transmitters give you more accurate pressure measurements.
Products Categories
Get A Free Quote
2088 Diffused Silicon Pressure Transmitter Applications
- Oil and Gas Industry:
Silicon diaphragm pressure transmitters are widely used for monitoring pressure in drilling operations, pipelines, and refineries. Their ability to withstand harsh conditions and corrosive environments makes them ideal for this sector. - Water and Wastewater Management:
These transmitters are employed to measure water pressure in treatment plants and distribution systems. They help in ensuring optimal pressure levels, which is crucial for efficient water supply and wastewater management. - Chemical Processing:
In chemical manufacturing, accurate pressure measurement is essential for safety and quality control. Silicon diaphragm pressure transmitters can handle aggressive media, making them suitable for various chemical processes. - HVAC Systems:
In heating, ventilation, and air conditioning systems, these transmitters monitor pressure in ducts and systems to ensure proper airflow and system efficiency. - Food and Beverage Industry:
They are used in processes requiring strict hygiene standards. Silicon diaphragm pressure transmitters can be sanitized easily and are capable of handling viscous and corrosive substances found in food processing.
